AccuPhase® Cable Assemblies
AccuPhase test cable assemblies are engineered for laboratory and flight-line environments where precision, durability, and repeatable performance are essential. Designed to meet the rigorous demands of RF testing, AccuPhase delivers exceptional phase and amplitude stability—even under movement, bending, and temperature fluctuations. Whether supporting research and development, production validation, or field maintenance, AccuPhase offers a solution that instills confidence in every test setup.
Register for the Upcoming AccuPhase Webinar

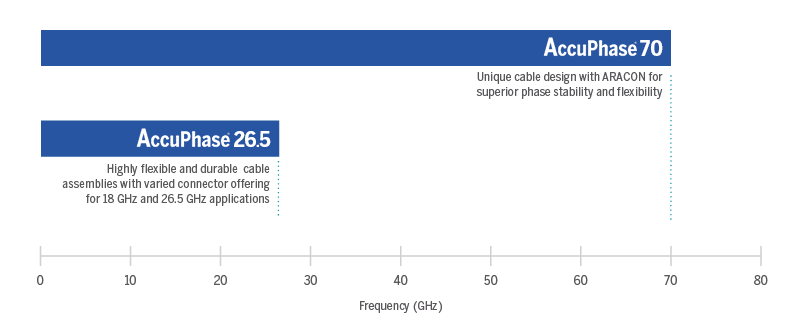

Test Cable Assembly Guide
Selecting the correct assembly for the right application is not always an easy task. Below are some considerations when selecting RF test assemblies.
Part Number Breakdown
----
| Code | Cable Code |
|---|---|
| UKR300C | Aqua/Blue Nomex Jacket, Ruggedized, Ultra low loss, 26.5 GHz max frequency cable, 0.300" cable diameter, 7-strand silver plated Copper |
| UKJ186D | Aqua/Blue Nomex Jacket, Ruggedized, Ultra low loss, ARACON braid, 70 GHz max frequency cable, 0.186" cable diameter, Solid silver-plated copper clad steel |
| Code | Armor Code |
|---|---|
| 1 | Polyurethane Jacket Over Braid/Stainless Steel Spiral |
| 2 | Stainless Steel Interlocked Hose |
| Q | (Special, FEP Over Spiral) |
| 0 | Internally Armored with Stainless Steel Spiral |
| Code | Cable Assembly Length (Inches) |
|---|---|
| Value | Last digit represents decimal point |
| Code | Connector Part Number |
|---|---|
| C00 | 1.85mm Plug |
| C10 | 1.85mm Jack |
| C0Z | 1.85mm Ruggedized DUT Male |
| C1Z | 1.85mm Ruggedized Port Socket |
| 000 | Precision 3.5 mm Plug |
| 010 | Precision 3.5 mm Jack |
| 300 | HF SMA Plug |
| 310 | HF SMA Jack |
| 5OU | Precision N Plug 50U |
| 510 | Precision N Jack |
| 60U | Precision TNC Plug |
| 610 | Precision TNC Jack |
| 70U | N Plug 70U |
| 710 | N Jack |
| Code | Connector Part Number |
|---|---|
| C00 | 1.85mm Plug |
| C10 | 1.85mm Jack |
| C0Z | 1.85mm Ruggedized DUT Male |
| C1Z | 1.85mm Ruggedized Port Socket |
| 000 | Precision 3.5 mm Plug |
| 010 | Precision 3.5 mm Jack |
| 300 | HF SMA Plug |
| 310 | HF SMA Jack |
| 5OU | Precision N Plug 50U |
| 510 | Precision N Jack |
| 60U | Precision TNC Plug |
| 610 | Precision TNC Jack |
| 70U | N Plug 70U |
| 710 | N Jack |
Offerings

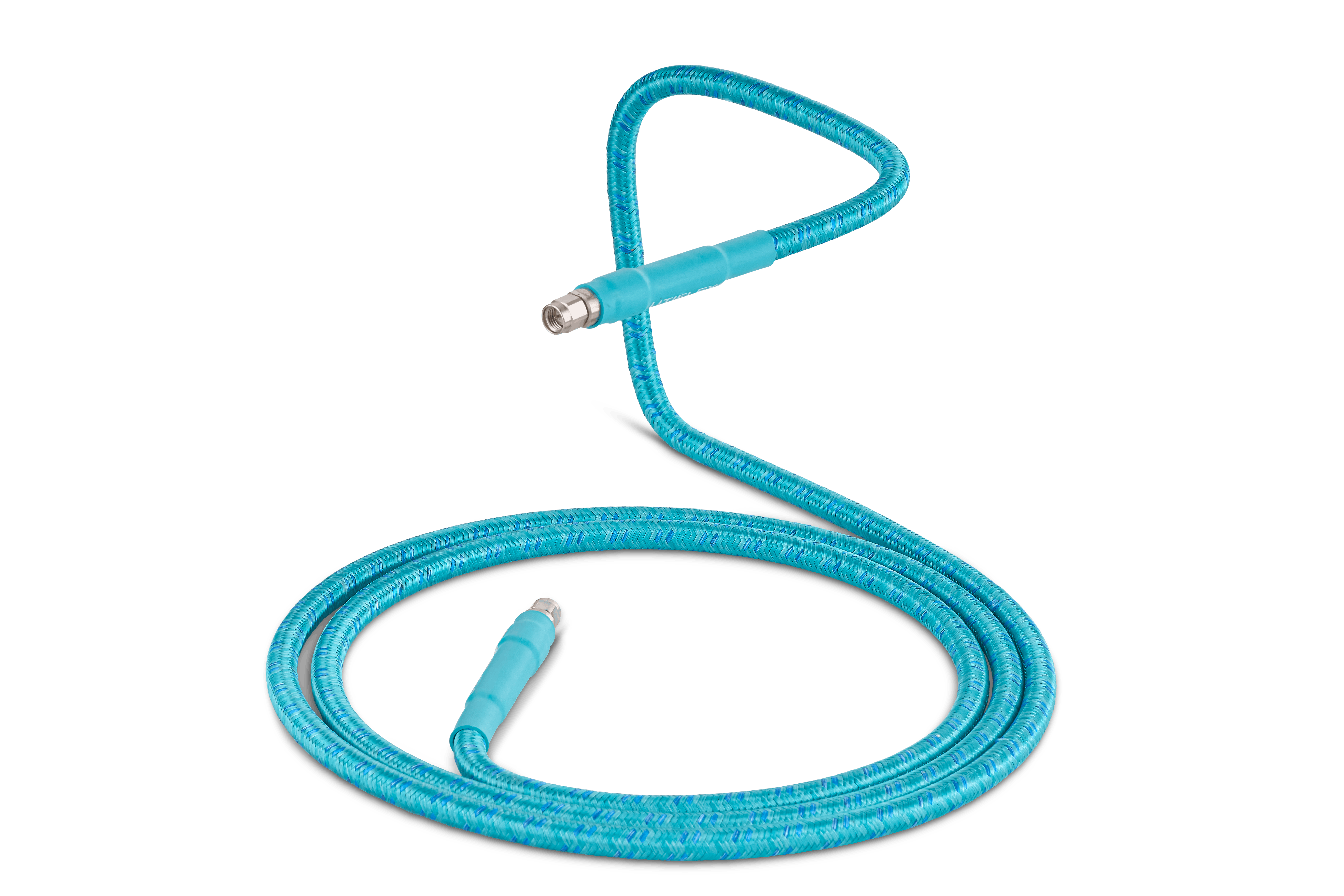

AccuPhase 26.5
AccuPhase 26.5 test cable assemblies represent the best in microwave cable technology. We fit AccuPhase26.5 with an additional highly flexible and abrasion-resistant ruggedization. Ideal choice for test labs or any testing environment requiring excellent mechanical strength and long-term reliability in a compact package. Our product has passed strenuous lifetime qualification testing to ensure long-term reliability. Also features excellent crush, torque, and kink resistance. Available with a variety of connectors capable of operating up 26.5-GHz, ideally suited to the demanding requirements of today’s test environments.

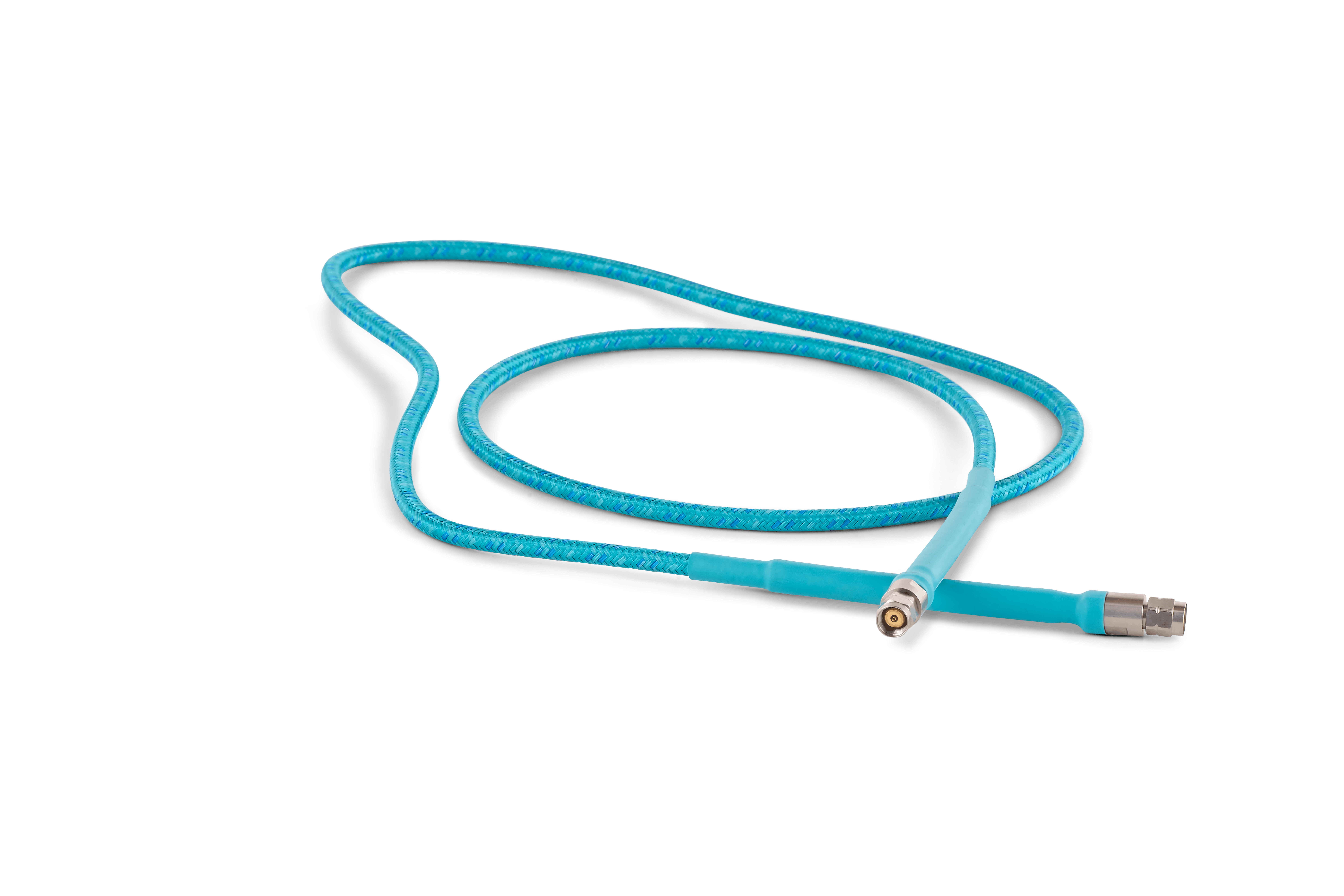

AccuPhase 70
AccuPhase 70 test cable assemblies represent the best in microwave cable technology. It is the first and only test cable assembly that incorporates ARACON® braid for the outer shield, that in combination with a helically wrapped silver-plated copper outer conductor and ultra-low-density PTFE dielectric, results in the most stable and durable 70 GHz RF cable assembly in the market. Ideal choice for test labs or any testing environment requiring excellent mechanical strength and long-term reliability in a compact package.
