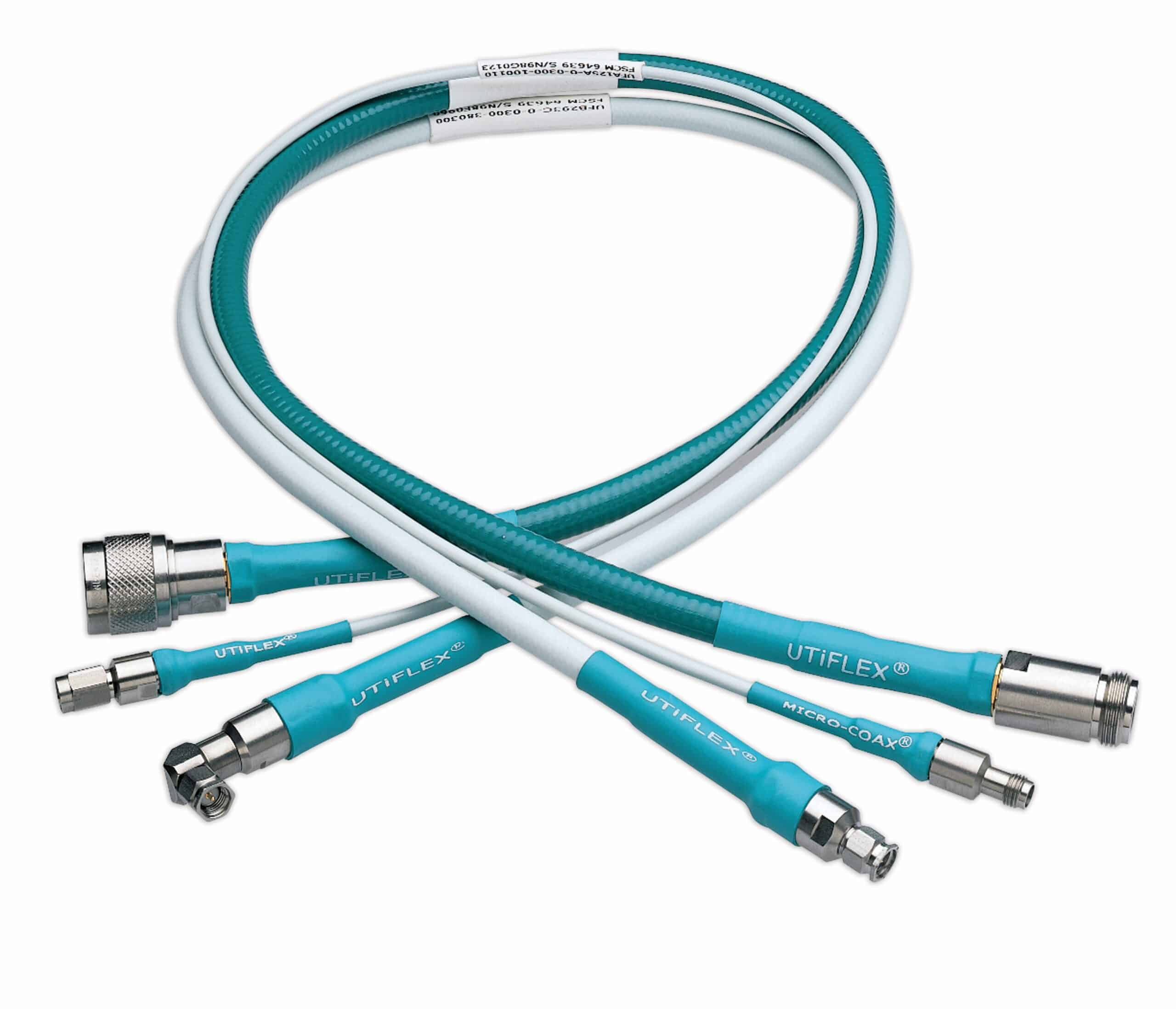

UTiFLEX® Flexible Microwave Cable Assemblies
UTiFLEX microwave cable assemblies are constructed using a low or ultra-low-density PTFE dielectric coupled with fully shielded outer conductors and a unique connector attachment that withstands mechanical and thermal stresses far better than standard connectors. The result: Excellent loss characteristics, outstanding phase stability, and superb flexibility compared to standard flexible cables — all without sacrificing mechanical integrity.
Part Number Breakdown
-------
| Code | Jacket Code |
|---|---|
| UF | Light Aqua FEP |
| UG | Light Aqua PFA |
| MC | Black Tefzel® |
| MK | Black Ruggedized |
| Code | Cable Code |
|---|---|
| A, C | Low-Loss |
| B | Ultra-Low-Loss |
| F | Miniature Low-Loss |
| J | Ultra-Light |
| N | Low-Loss (Flat Wire Braided Shield) |
| R | Ruggedized |
| Code | Cable Diameter |
|---|---|
| Value | (in x 1000) |
| Code | Center Conductor Code |
|---|---|
| A | Solid Silver-Plated Copper |
| B | 19 Strand Silver-Plated Copper |
| C | 7 Strand Silver-Plated Copper |
| D | Solid Silver-Plated Copper Clad Steel |
| F | 7 Strand High Strength SPC Alloy |
| Code | Armor Code |
|---|---|
| 1 | Polyurethane Jacket Over Braid/Stainless Steel Spiral |
| 2 | Stainless Steel Interlocked Hose |
| Q | (Special, FEP Over Spiral) |
| Code | Cable Assembly Length (Inches) |
|---|---|
| Value | Last digit represents decimal point |
| Code | Connector Part Number |
|---|---|
| 100 | 2.4 mm Plug |
| 110 | 2.4 mm Jack |
| 200 (20V Space) | SMK Plug |
| 280 (2QV Space) | SMK Right-Angle Plug |
| 210 | SMK Jack |
| 000 | Precision 3.5 mm Plug |
| 010 | Precision 3.5 mm Jack |
| (30V Space) | SMA Plug 300 |
| (31V Space) | SMA Jack 310 |
| 380 (3QV Space) | SMA Right Angle Plug |
| 320 (32V Space) | SMA Bulkhead Jack |
| 460 | Precision 7 mm |
| 5OU | Precision N Plug 50U |
| 510 | Precision N Jack |
| 60u (A0V Space) | Precision TNC Plug |
| 610 (A1R Space) | Precision TNC Jack |
| 70U | N Plug 70U |
| 710 | N Jack |
| 804 | BNC Plug |
| F10 | SMP Jack |
| F80 | SMP Right Angle Jack |
| Code | Connector Part Number |
|---|---|
| 100 | 2.4 mm Plug |
| 110 | 2.4 mm Jack |
| 200 (20V Space) | SMK Plug |
| 280 (2QV Space) | SMK Right-Angle Plug |
| 210 | SMK Jack |
| 000 | Precision 3.5 mm Plug |
| 010 | Precision 3.5 mm Jack |
| (30V Space) | SMA Plug 300 |
| (31V Space) | SMA Jack 310 |
| 380 (3QV Space) | SMA Right Angle Plug |
| 320 (32V Space) | SMA Bulkhead Jack |
| 460 | Precision 7 mm |
| 5OU | Precision N Plug 50U |
| 510 | Precision N Jack |
| 60u (A0V Space) | Precision TNC Plug |
| 610 (A1R Space) | Precision TNC Jack |
| 70U | N Plug 70U |
| 710 | N Jack |
| 804 | BNC Plug |
| F10 | SMP Jack |
| F80 | SMP Right Angle Jack |
Offerings

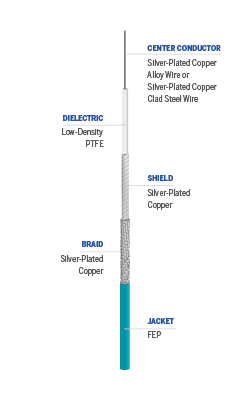

Miniature Low-Loss
These general purpose microwave miniature cables have been designed to offer superior electrical performance in the smallest possible package for fixed installations. They are a cost-effective alternative when an RG cable cannot perform to your system needs, or when a semi-rigid cable is too cumbersome. The UTiFLEX miniature cables are available with a large selection of connectors, and can be easily customized to meet your exact requirements.- Diameters from 0.070" to 0.092"
| Part-Number | Description | Download Datasheet | |
|---|---|---|---|

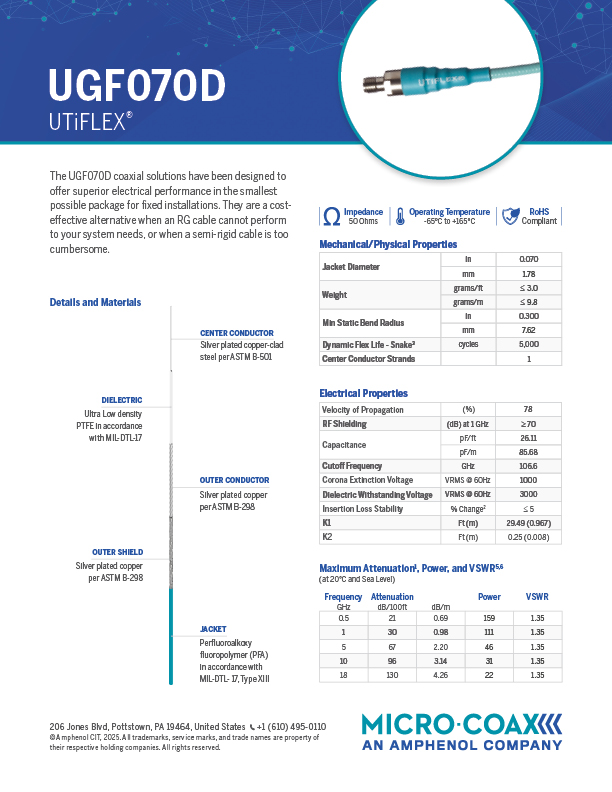

| UGF070D | 0.070" UTiFLEX Cable | ||
| UFF092D | 0.092" UTiFLEX Cable | ||
| UFF092F | 0.092" UTiFLEX Cable |

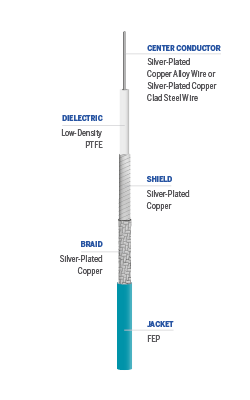

Low-Loss
UTiFLEX Low-Loss Cable Assemblies provide you with the complete high-performance microwave cable. They have outstanding mechanical integrity without sacrificing insertion loss, phase stability, or SWR. UTiFLEX Low-Loss Cable Assemblies are extremely versatile and moderately priced, and fit a large variety of applications.- Diameters from 0.092" to 0.210"
Ultra Low-Loss
UTiFLEX Ultra-Low-Loss Cable Assemblies are optimized to provide outstanding insertion loss in a flexible cable construction up to 18, 26.5, 40 and 70 GHz. The cables utilize an ultra-low density PTFE dielectric that lowers weight and insertion loss, improves electrical stability, and provides greater resilience and flexibility when compared to standard microwave cables.- Diameters from 0.088" to 0.311"

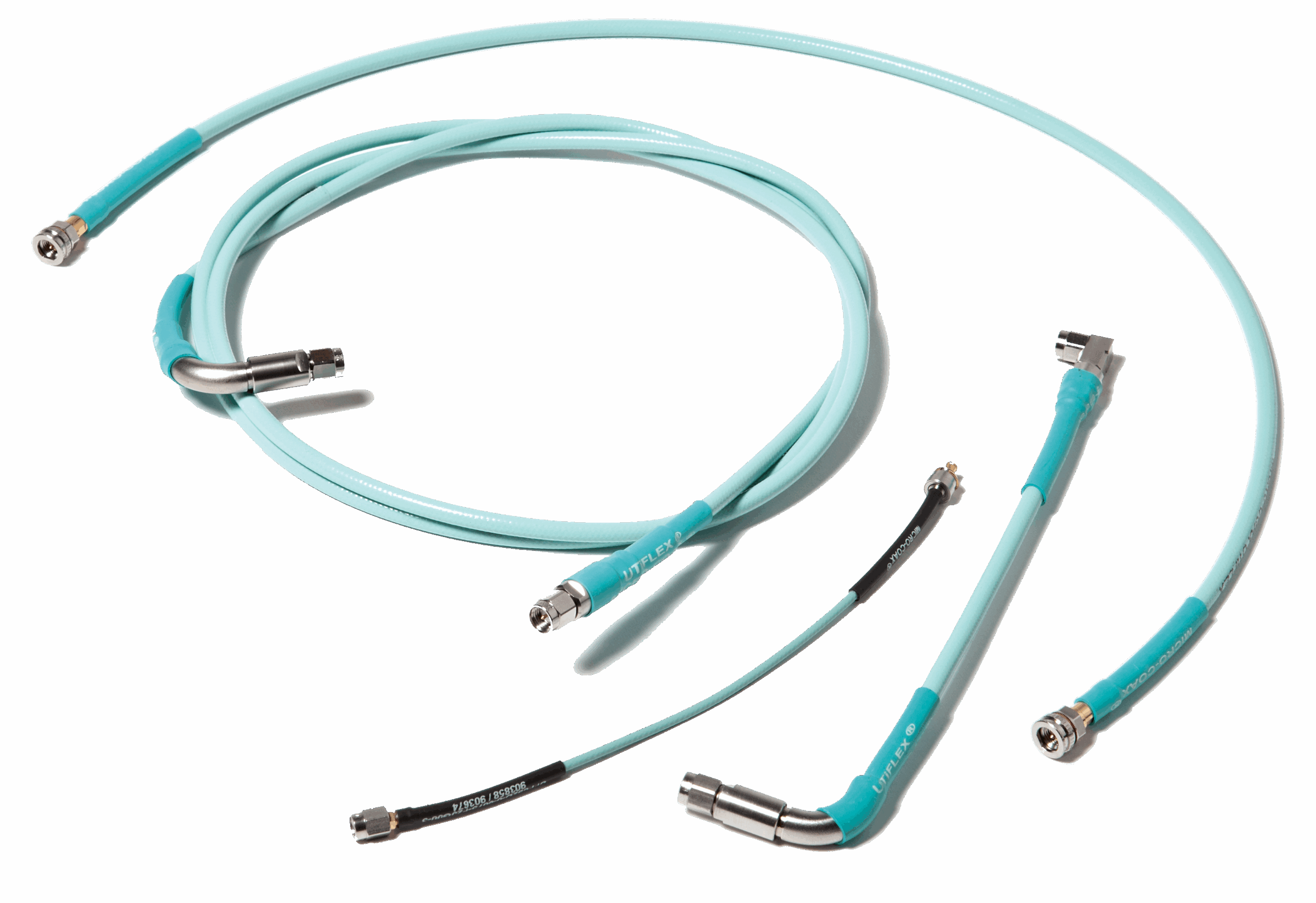

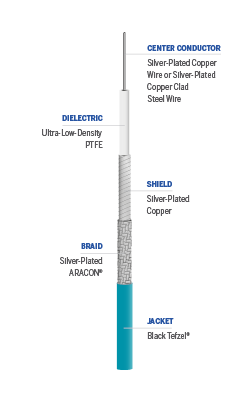

Ultra-Light
UTiFLEX Ultra-Light Cable Assemblies are optimized for spaceflight applications. They provide the lightest weight, lowest insertion loss, and best radiation resistance in a flexible cable construction. The cables utilize our ARACON® for the outer shield, an ultra-low-density PTFE for the dielectric, and a ETFE jacket. If required, cable assemblies are manufactured in a Class 10,000 clean-room by certified solder technicians.- Diameters from 0.088" to 0.310"

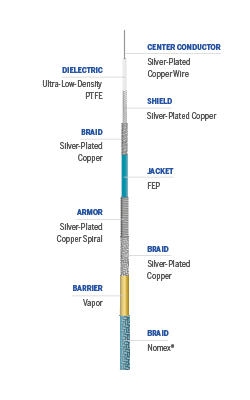

MKR Test
MKR test cable assemblies represent the best in technology. We fit MKR with an additional highly flexible and abrasive-resistant ruggedization. Ideal choice for test labs or any testing environment requiring excellent mechanical strength and long-term reliability in a compact package. Our product has passed strenuous lifetime qualification testing to ensure long-term reliability. Also feature excellent crush, torque, and kink resistance, ideally suited to the demanding requirements of today’s test environments. Available in the 26.5-GHz MKR300C series which are capable of withstanding 150,000 unrestrained flexes with minimal degradation.| Part Number | Description | Download Datasheet | |
|---|---|---|---|
| MKR300C | 0.300" UTiFLEX Cable |
Thermal Vacuum Test
Thermal vacuum testing is a risk mitigation strategy utilized in some hi-rel applications, notably space equipment such as satellites. Our TVAC Test Assemblies are thermal vacuum compatible for use in TVAC chambers. These assemblies utilize high-performance, Ultra-Low-Loss UTiFLEX Cable, and are produced to exacting space-grade standards utilizing low-outgassing materials and vented connectors.- Diameters from 0.142" to 0.311"
